German flamco fill water make-up device

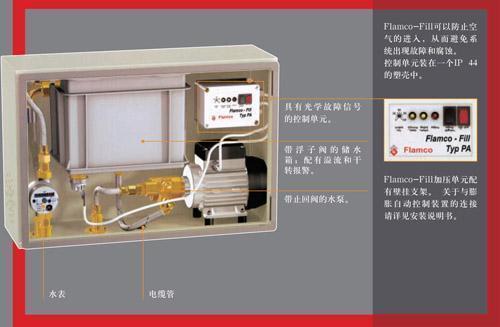

The German flamco fill pressurization device monitors the pressure in the closed heating and cooling system and makes up water if necessary. Make up water according to pressure or water level at a preset time interval.

Advantages of flamco fill:

Flamco fill can meet all the requirements of drinking water supply.

All models are equipped with water meters to monitor the amount of make-up water.

Any fault shall be displayed by visual alarm, and can be displayed on the fault log (no differential pressure socket) during remote control.

For details, please log in: http://www.flamco.net.cn "electronic sample" column!

Flexcon fill make-up unit

Flexcon fill stu is a combination of nfe1.1 and mve2

Flexcon fill light is a combination of nfe1.1 and VE1

Flexcon fill FWA FWM light is a combination of nfe2.1 and mVe1.

Flexcon fill PE constant pressure water supply unit

Flexcon fill PE constant pressure make-up unit can monitor the pressure of closed heating and air conditioning system and make-up water if necessary.

Make up water according to liquid level or pressure at a preset time interval. Two working modes are available. One is for systems with a constant pressure unit (according to the command of the liquid level of the constant pressure unit), the other is for systems with expansion (according to the command of the system pressure).

All modes monitor the water replenishment through the pulse water meter.

All faults cause visual alarm and can be seen automatically in the fault log.Can be connected to

NFE 1 make-up unit

It is used to make up water directly through drinking water pipe.

Including: water meter, filter, backflow preventer and ball valve

。

NFE 2 make-up unit

For water supply lines that do not require backflow preventers.

Including: water meter, filter, check valve and ball valve.

NFE 3 make-up unit
